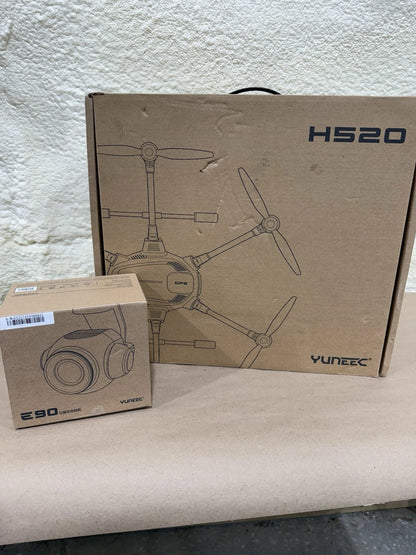

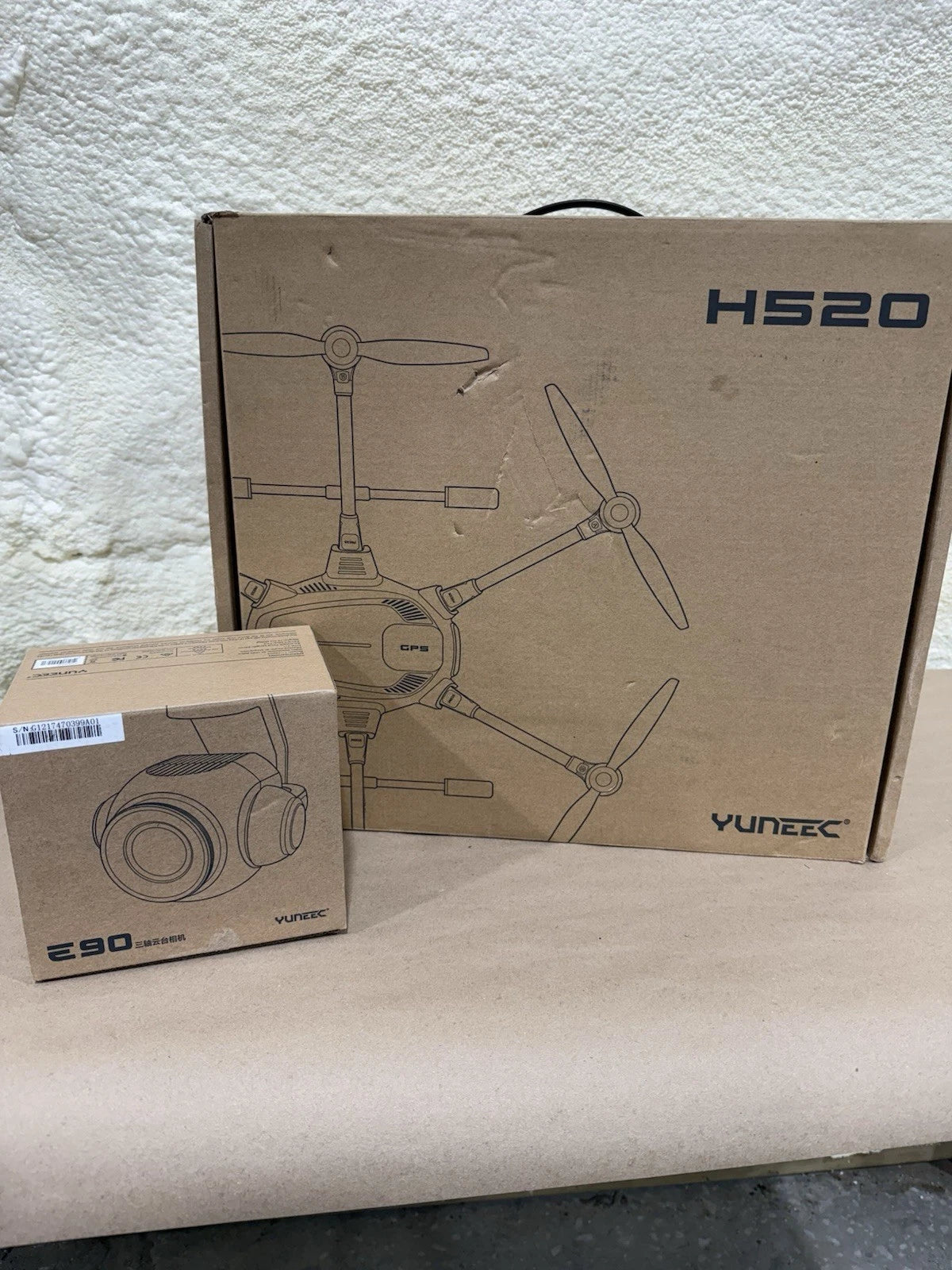

H520 YUNEEC TYPHOON COMMERCIAL DRONE HEXACOPTER E90 4K RGB CAMERA BUNDLE ST16S

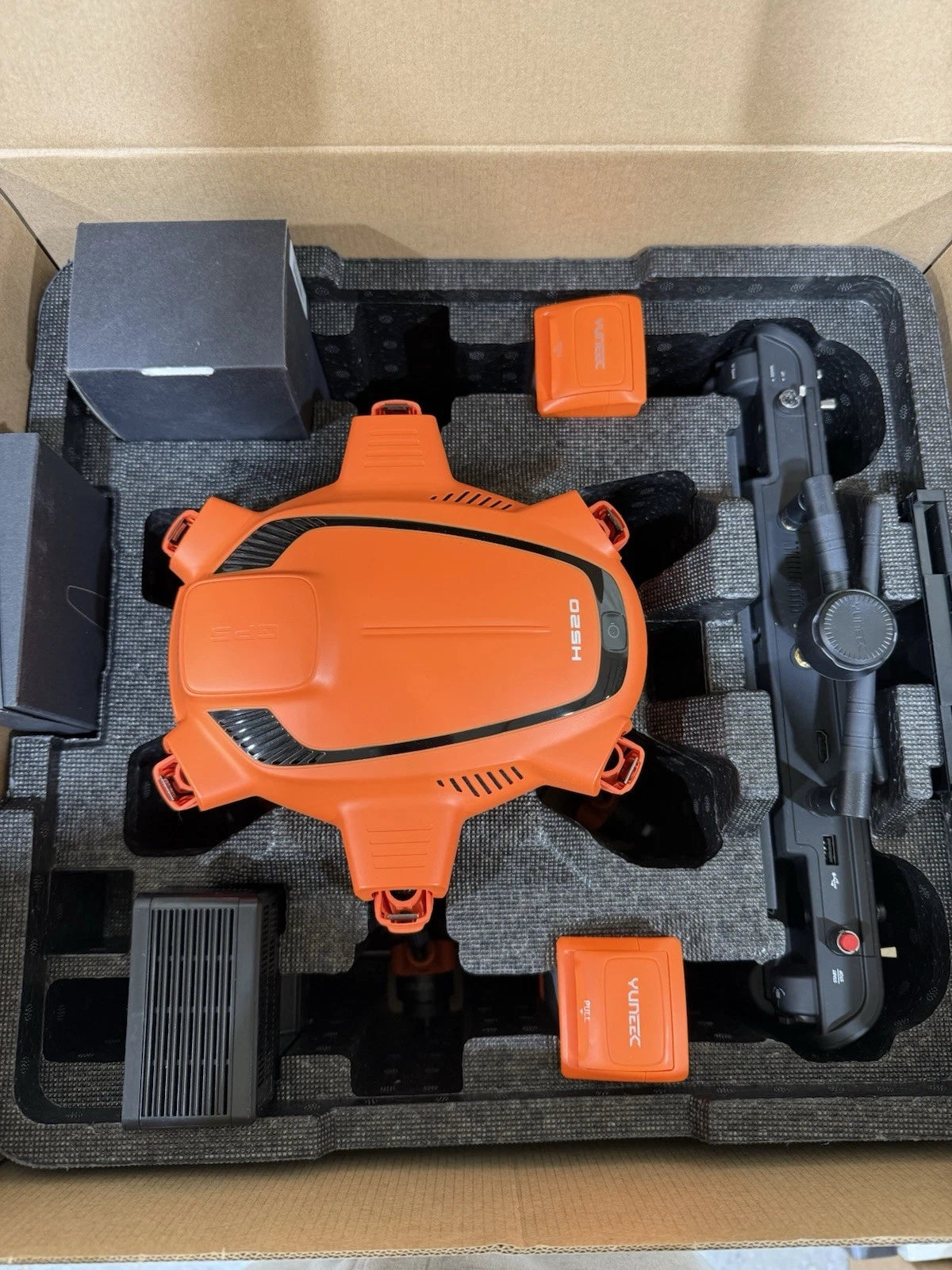

Major Items:

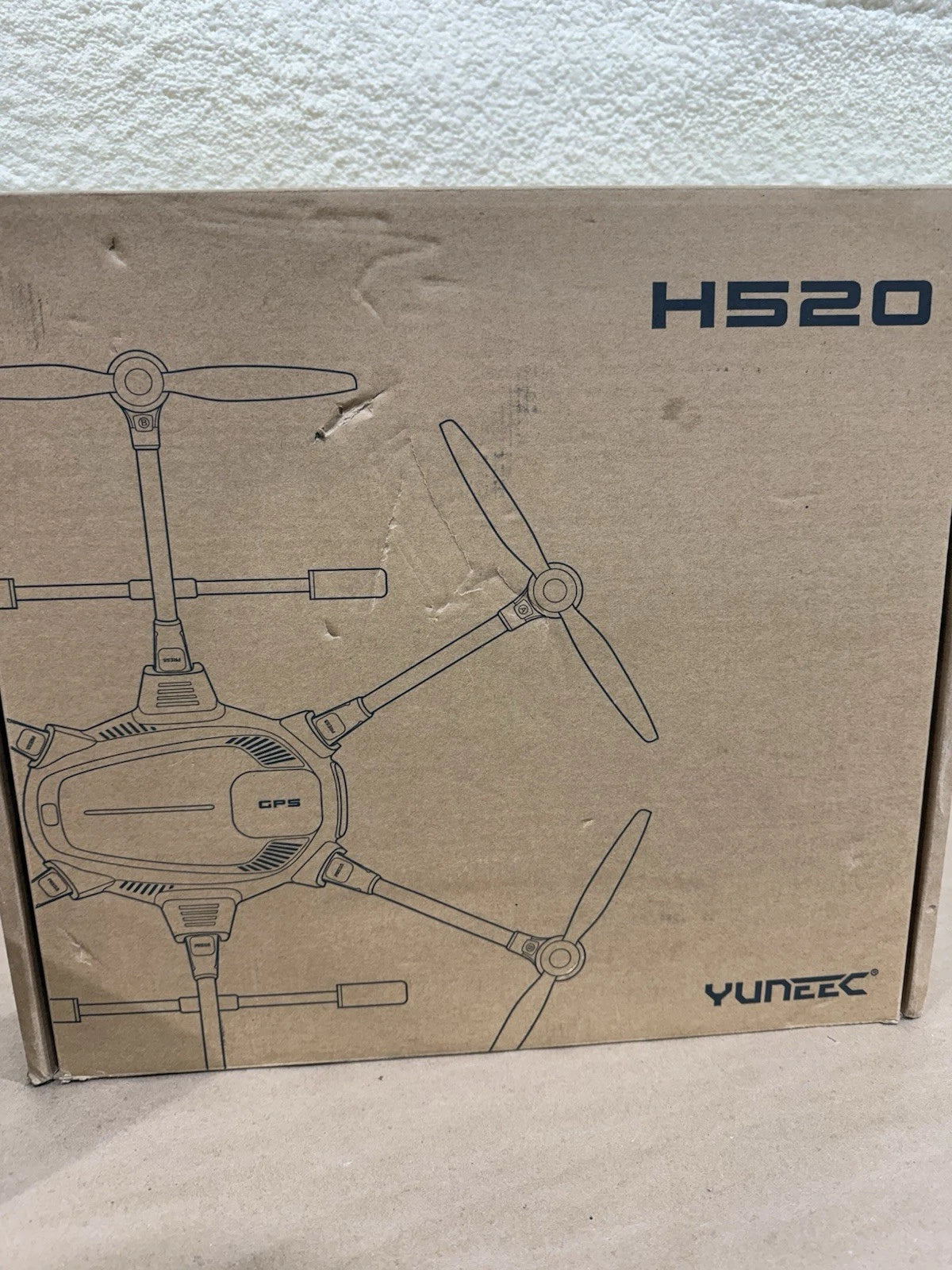

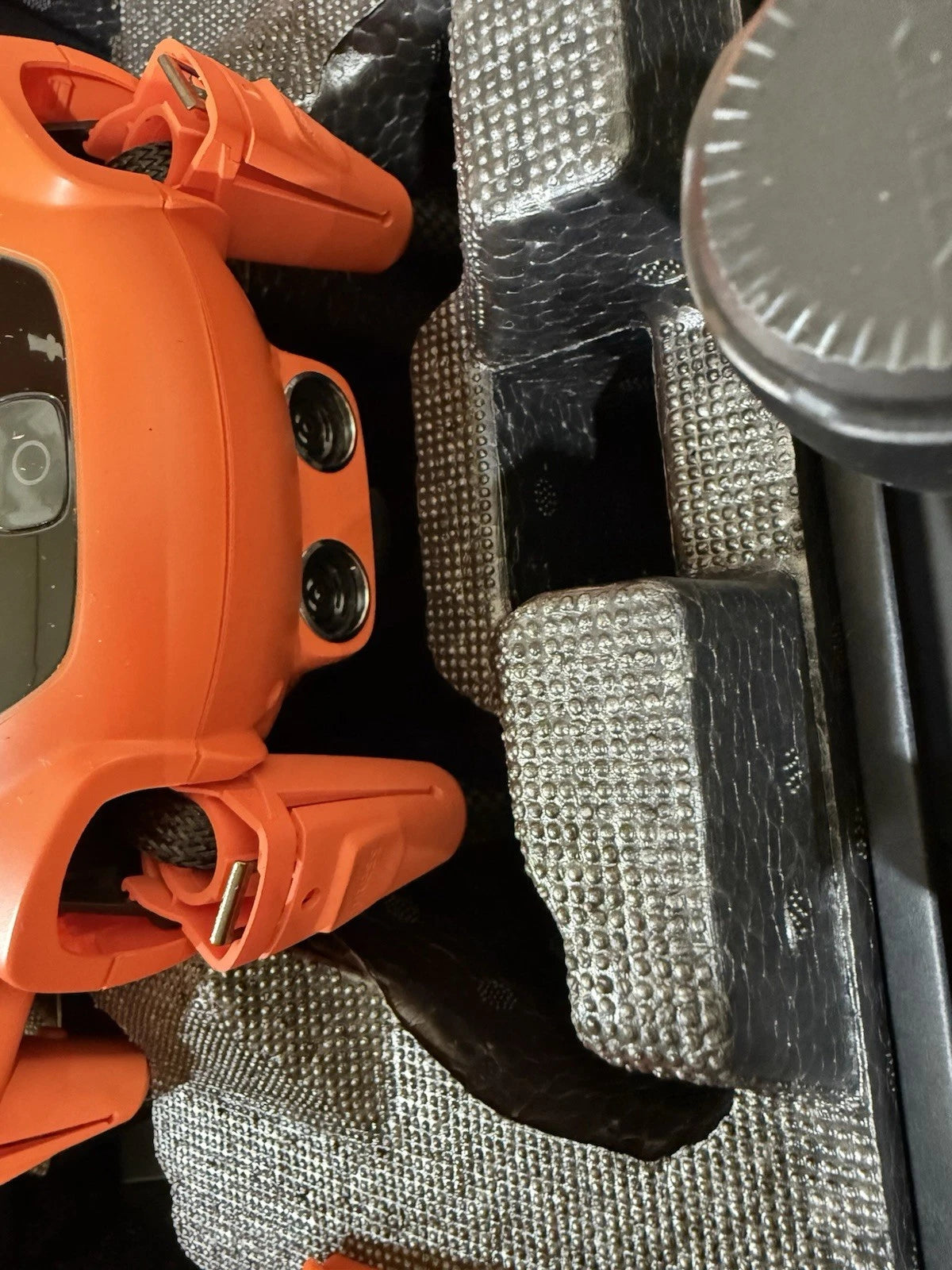

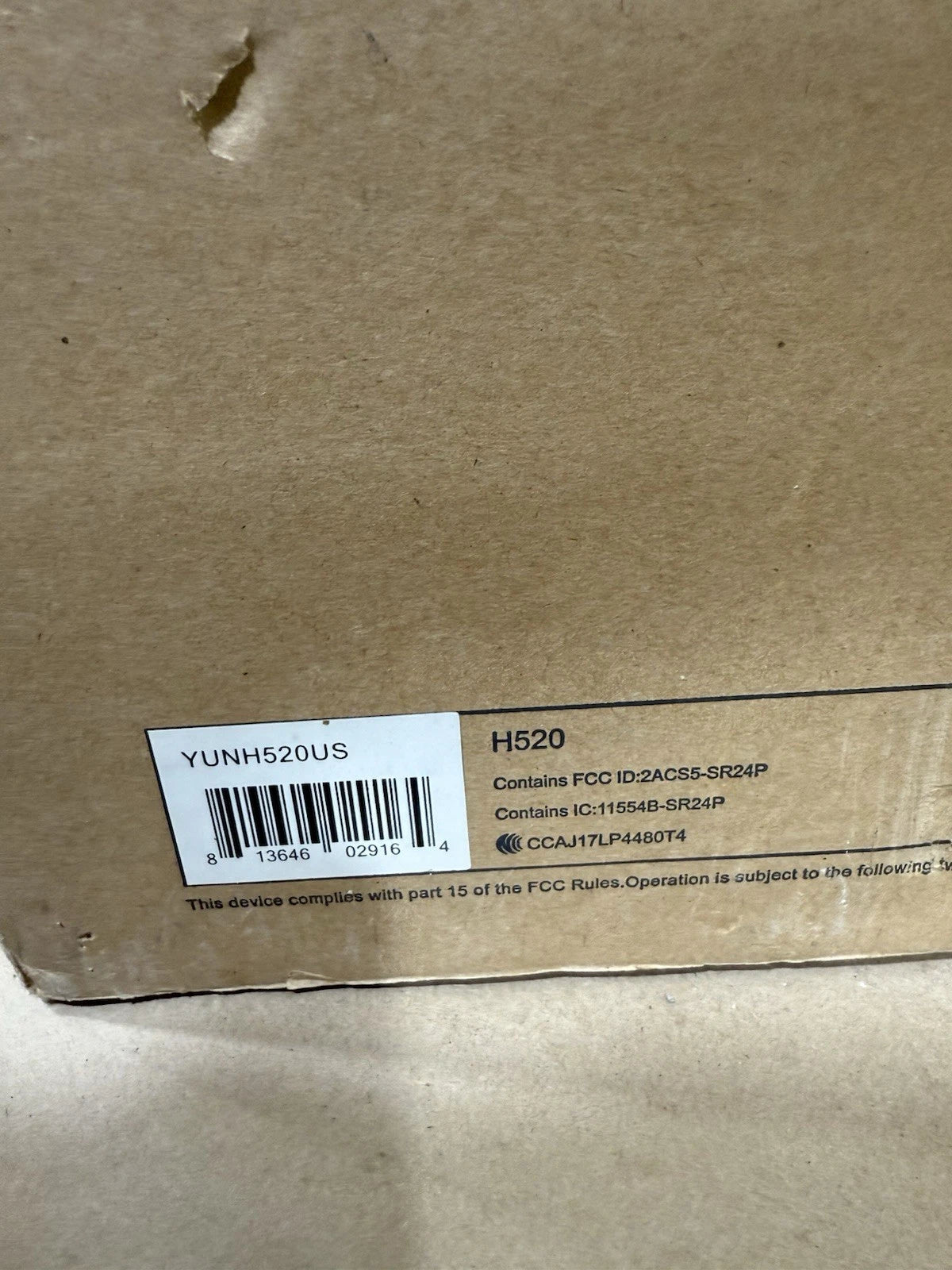

*Yuneec H520 Commercial Hexacopter Drone [1 New]

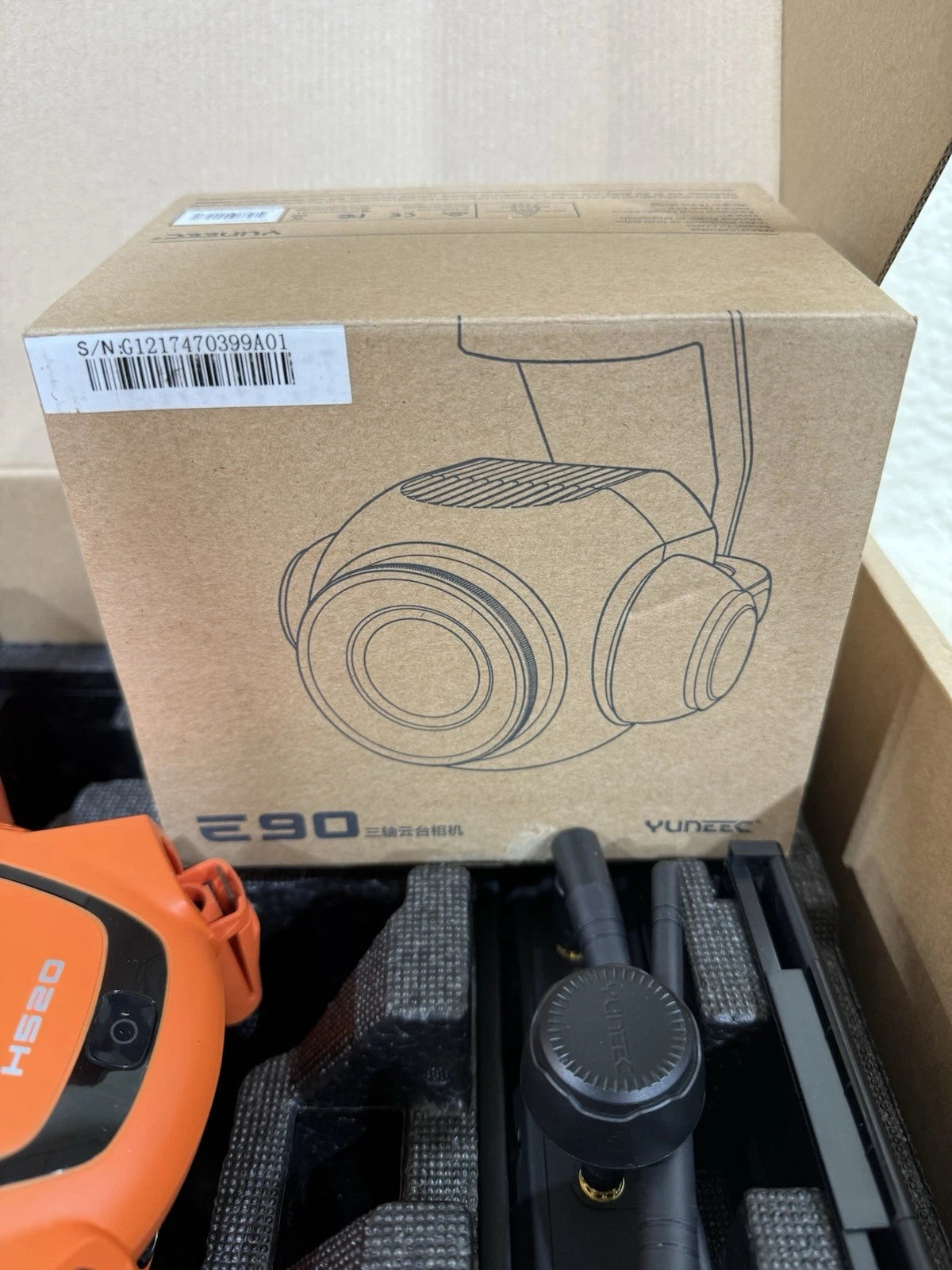

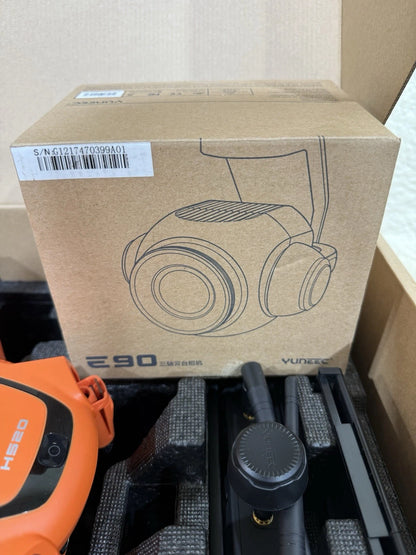

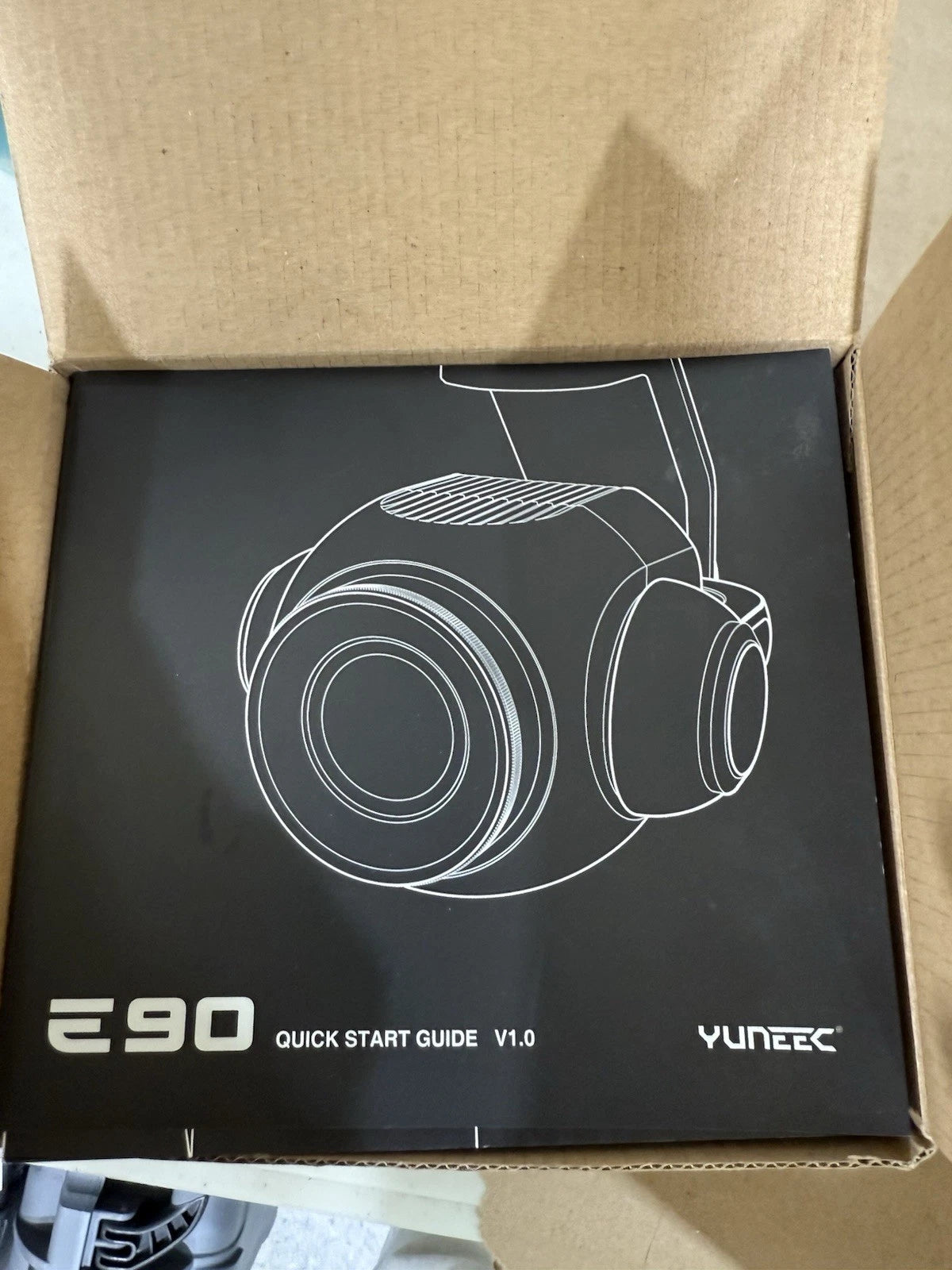

*Yuneec E90 4K Camera [1 NEW]

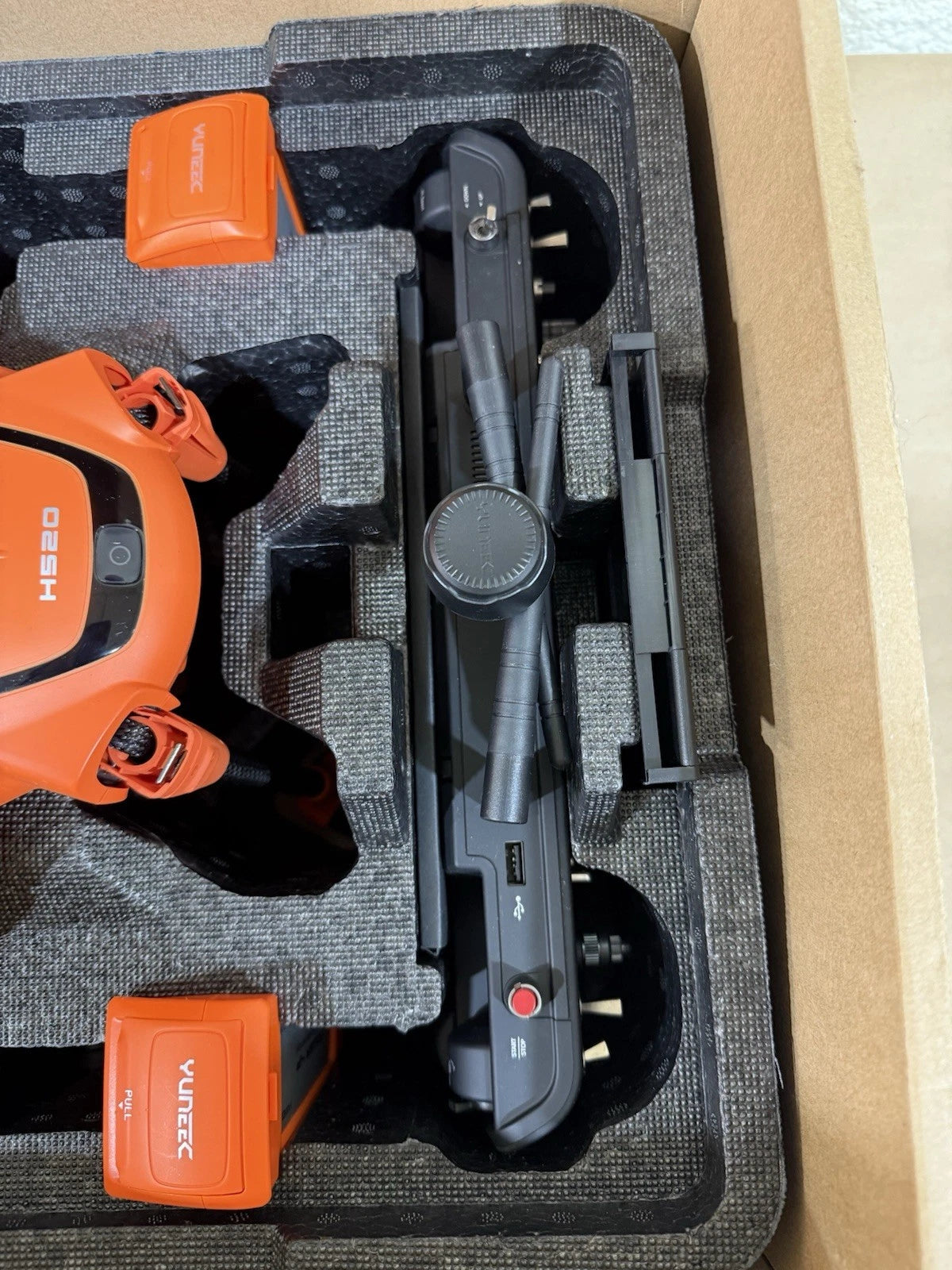

*ST16S Ground Station Controller [1 NEW]

*4S-6200mAh Li-Po Batteries [2 New]

*Battery Charger [1 New]



Accessory

*Clockwise A Rotors [6 units] [Brand New]

*Counter-Clockwise B Rotors [6 units] [Brand New]

*16 GB MicroSD Card [1 unit] [Brand New]

*USB Cable [1 unit] [Brand New]

*Power Cable [1 unit] [Brand New]

*Others [small items accessories] [Brand New]

*Carry-on backpack [Brand New]



Yuneec H520 Commercial Hexacopter equipped with one E90  4K camera RGB Camera Bundle, and it’s Ready-To-Fly.  All software and firmware are updated, drone and payload are calibrated as well.



H520 Commercial Hexacopter: Six-rotor design for superior stability in challenging conditions. H520 is up to 25~28 minutes of flight time per charge with an option for continuous operation via ground tethering. ST16S Ground Station Controller with a 7” touchscreen for live video, flight control, and waypoint-based mission planning. Rugged commercial-grade builds for industrial and emergency applications.



Aircraft H520

Stability: Fly in winds up to 45mph

5 Motor Fail Safe: Fly and complete the mission in progress if/when one motor fails during flight

Take Off Weight: 1645g/ 3.6lbs (w/o payload)

Diagonal Length: 520mm/ 20in (w/o rotor blades)

Dimensions: 520x457x309 mm / 20.4x18x12.1 in

Flight Time: 25 - 30 minutes

Max Horizontal Speed: 13.5 m/s

Max Ascent Speed: 4 m/s

Max Descent Speed: 2.5 m/s

Max Flight Height: 500m/ 1640ft

Max Angular Velocity: 120 degrees/ s

Battery: 4S 5250mAh LiPo

Motors: 720 KV

Charger: SC4000 - 4H

Operating Temperature: 0°C - 40°C / 32°F - 104°F

Storage Temperature: -10°C - 50°C / 14°F - 122°F



Obstacle Avoidance System

Sensor: Ultrasonic

Flight Speed: 4 m/s

Operating Environment: Height > 1.5m / 5ft. Distance to Obstacles < 5m / 16ft



ST16S Ground Station (remote controller)

# Of Channels: 16

Transmission Distance

Control: Up to 1 Mile / 1.6 km

Video: Up to 1 Mile / 1.6 km

Video Transmission: 720p [5.8 GHz Wi-Fi]

Screen Size: 7.0" / 17.8 cm Touch Screen

Battery: Lithium-Ion, 8700 mAh, 3.6V, 31.32Wh

Connections: 1 x HDMI, 2 x USB, and 1 x Headphone

Operating System: Android

Telemetry Data

The large 7" display can display a variety of drone telemetry data, such as flight mode, altitude, speed over ground, distance from home, camera status, GPS position coordinates, and aircraft battery status.



DataPilot App

The ST16S is programmed to work with the YUNEEC DataPilot app, which is meant to help you plan survey and waypoint-based flights. The system can help you create orthomaps, 3D scans, crop data imagery, and more.



Mapping

With the ST16S and the DataPilot app, User can auto-generate survey paths with user-defined frontlap, sidelap, and cross-hatching for precise 3D or large-format images. User can define a survey resolution via altitude or inch-per-pixel decisions, providing a platform for flying in low or high-altitude scenarios. User also has the ability to store/cache maps from many third-party map providers to access when flying in areas with no connectivity. User can even place precise waypoints in areas where no updated maps are available. Flights can be stored for later recall and reflight, or planned off-site and transported to the control system via email, USB drive, or microSD card.



H520 Drone with Compatible Cameras (payloads)

E50 (YUNE50USP)

E90 (YUNE90US)

CGOET (YUNETUS)

E30Z (YUNE30ZUS)

E10T (YUNE10TUS)

E10Tv (YUNE10TVUS) (YUNE10T34US) (YUNE10Tv32US)
